TRANSMAX1000 Bushing Monitor with Partial Discharge Detection

TRANSMAX1000 builds on the usefulness of the ZVCM by looking beyond the bushing capacitive layers to the bushing base, connections to transformer windings, and the transformer itself.  Beyond a fully-featured bushing monitor, it also receives and interprets Partial Discharge phenomena in the range of 2Mhz to 20Mhz.  Partial Discharge is the result of defective insulation in areas of high electrical stress, movement of energized parts, or design errors.  Some types of Partial Discharge may not present a problem, but others can develop into surface tracking or insulation failure.

TRANSMAX1000 uses a single bushing sensor for both PD and bushing monitoring.  This is made possible through the use of advanced signal processing and filtering techniques.

Other features may be included with the TRANSMAX1000 System:

  • Load Current
  • GIC Monitoring
  • Ambient Humidity
  • Ambient Temperature
  • Transformer Temperature

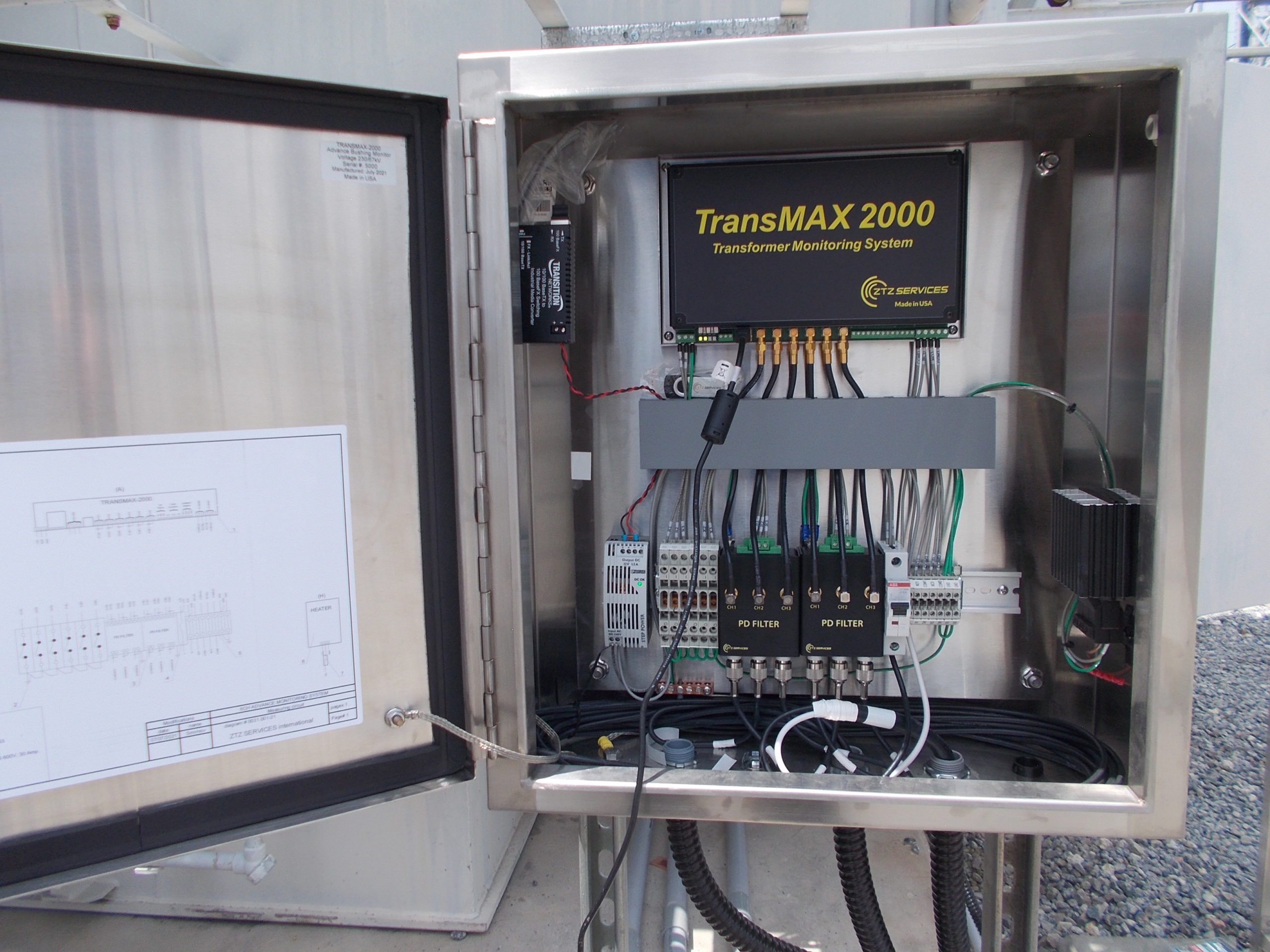

The compact design is engineered for ease of installation with plug-able Phoenix® connectors and ample space for the marshaling and dressing of all sensor cable connections.

Pairs the best Partial Discharge Technology with time-tested bushing monitor technology.

Ability to monitor three load currents, temperatures at up to three locations, ambient humidity and ambient temperature, GIC levels.

ZTZ TransMax

Supports popular communication protocols over serial or TCP/IP including Modbus, DNP 3.0, and IEC61850.

Hand-built in USA by skilled technicians. Covered by full lifetime warranty. All analysis and management dashboard software is included with the system.
